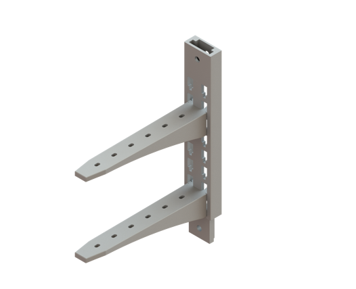

Wall Bracket
APPLICATION:
It is designed for mounting cable lines along walls, may be used together with cable trays and clamps.
INFORMATION:
Colours:
- RAL chart
Materials:
- PG – polymeric fiberglass
Wall mounting:
- M16
Service life:
- up to 50 years if operating instructions are observed
Operating temperature range:
- -60° to +120°
Advantages:
Material is characterised by increased resistance to weather impact, saline solutions, oils and other oil products, solar and UV radiation and to ozone.
Technical data:
Bore size:
10x17mm (0.39 in x 0.67 in)
Number of holes:
WB-200: 3 off
WB-250: 4 off
WB-400: 6 off
WB-600: 9 off
Parts:
WALL BRACKET consists of wall bracket and cable rack, each is supplied separately.
Wall Bracket

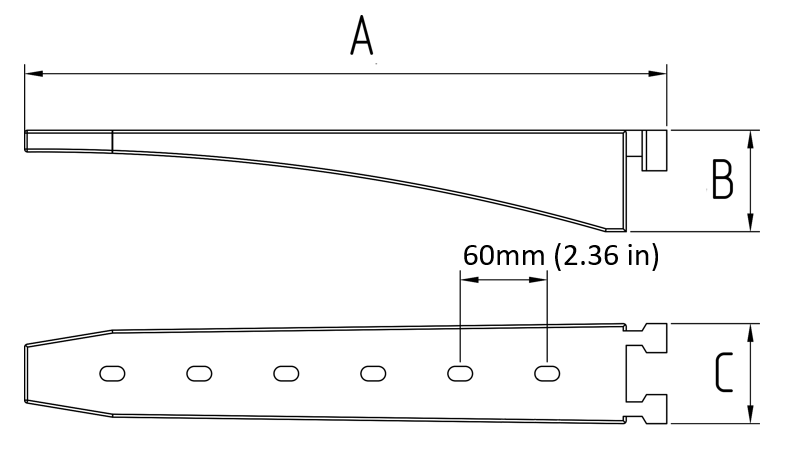

WALL BRACKET DIMENSIONS
| Item | A, mm (in) |
B, mm (in) |
C, mm (in) |
ø D1, mm (in) |
Safe working load (SWL), kg (lb) |
Weight, kg (lb) |
|---|---|---|---|---|---|---|
| WB 200 | 245.00 | 70.00 | 69.00 | 10.00 | 435.00 | 0.45 |
| (9.65) | (2.76) | (2.72) | (0.39) | (959.01) | (0.99) | |
| WB 250 | 295.00 | 70.00 | 69.00 | 10.00 | 329.00 | 0.65 |
| (11.61) | (2.76) | (2.72) | (0.39) | (725.32) | (1.43) | |
| WB 400 | 445.00 | 70.00 | 69.00 | 10.00 | 170.00 | 0.86 |
| (17.52) | (2.76) | (2.72) | (0.39) | (374.79) | (1.90) | |
| WB 600 | 645.00 | 70.00 | 69.00 | 10.00 | 82.00 | 1.20 |
| (25.39) | (2.76) | (2.72) | (0.39) | (180.78) | (2.65) |
Cable Rack

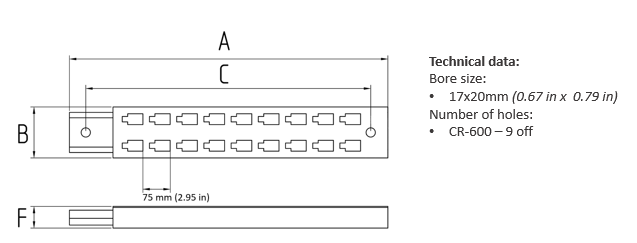

CABLE RACK DIMENSIONS
| Item | A, mm (in) |
B, mm (in) |
C, mm (in) |
F, mm (in) |
Weight, kg (lb) |
|---|---|---|---|---|---|
| CR 600 | 585.00 | 94.00 | 523.50 | 40.00 | 1.40 |
| (23.03) | (3.70) | (20.61) | (1.57) | (3.09) |
