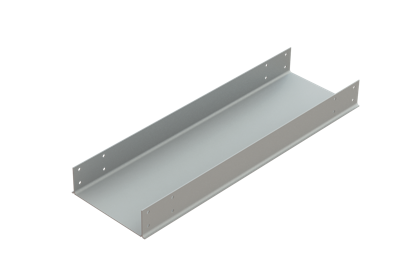

Solid Bottom Cable Tray
DESCRIPTION:
This cable tray is designed for laying cable lines and is manufactured of composite materials using pultrusion method. It may come with cover for additional protection.
APPLICATION:
It is used for organising cable routes for indoors and outdoors applications. It protects cables from mechanical damage and exposure to aggressive environment.
INFORMATION:
| Section length mm (in) |
Wall Height H mm (in) |
Section width mm (in) |
|||
|---|---|---|---|---|---|
| 3000.00 | 60.00 | 100.00 | 60.00 | 200.00 | 400.00 |
| (118.11) | (2.36) | (3.94) | (2.36) | (7.87) | (15.75) |
| 6000.00 | 80.00 | 200.00 | 100.00 | 300.00 | 500.00 |
| (236.22) | (3.15) | (7.87) | (3.94) | (11.81) | (19.685) |
Bolt diameter:
- M6
Colours:
- RAL chart
Materials:
- VE – vinyl ester resin
- PE – polyester resin
Joint type:
- Coupler plate
