Horizontal Hinge

APPLICATION:
For organizing cable tray turns in horizontal plane.

INFORMATION:

Colours:

  • RAL chart

Materials:

  • VE – vinyl ester resin
  • PE – polyester resin

Joint type:

  • M6 bolts

Note:

Metalware for hinge assembly is outside the scope of supply. Article numbers are specified per one hinge element.

Service life – 30 years minimum

DIMENSIONS

Item Height H
mm
(in)		 Width L
mm
(in)		 Width L
mm
(in)		 Hole diameter
D
mm
(in)
HH 80/100 VE 65.00 150.00 7.00 0.06
(2.56) (5.91) (0.28) (0.13)
HH 80/100 PE 65.00 150.00 7.00 0.06
(2.56) (5.91) (0.28) (0.13)

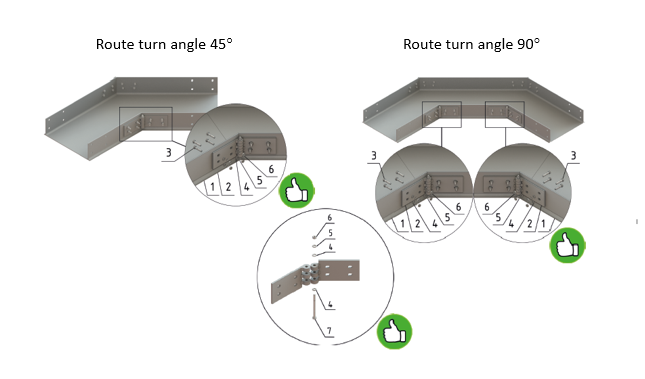

HORIZONTAL HINGE USE EXAMPLE:

  1. Cable tray VE/PE
  2. Horizontal hinge 80/100 VE/PE
  3. M6x32 screw
  4. 6/9021 extended washer
  5. 6/125 spring washer
  6. M6 nut
  7. M6x90 bolt

Note: Cable route turn angles shown are widely used standard solutions for arranging cable line turns and winding. IMPORTANT! This hinge allows to make any desired angles.
