Vertical Hinge

APPLICATION:
For organizing cable tray turns in horizontal plane.

INFORMATION:

Colours:

  • RAL chart

Materials:

  • VE – vinyl ester resin
  • PE – polyester resin

Joint type:

  • M6 bolts

Compatible with all tray types.

Note:

Metalware for hinge assembly is outside the scope of supply. Article numbers are specified per one hinge element.

Service life – 30 years minimum

DIMENSIONS

Item Height H
mm
(in)		 Width L
mm
(in)		 Width L
mm
(in)		 Hole diameter
D1
mm
(in)		 Hole diameter
D2
mm
(in)
HH 80/100 VE 65.00 198.00 7.00 13.00 0.09
(2.56) (7.80) (0.28) (0.51) (0.20)
HH 80/100 PE 65.00 198.00 7.00 13.00 0.09
(2.56) (7.80) (0.28) (0.51) (0.20)

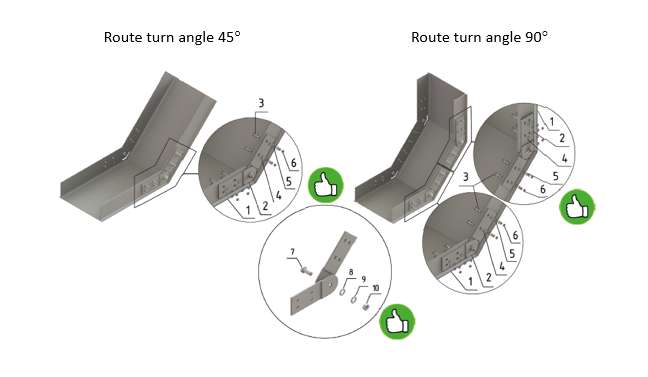

VERTICAL HINGE USE EXAMPLE:

  1. Cable tray VE/PE
  2. Vertical hinge 80/100 VE/PE
  3. M6x32 screw
  4. 6/9021 extended washer
  5. 6/125 spring washer
  6. M6 nut
  7. M12x30 nut
  8. 12/9021 extended washer
  9. 12 spring washer
  10. M12 nut
