Busbar Support

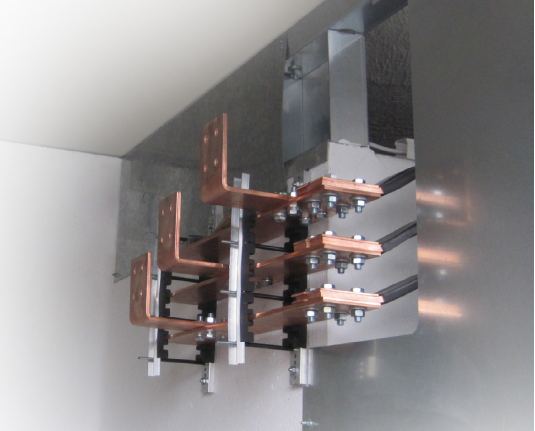

APPLICATION:

For fixing conductors in a switchboard equipment
(copper, aluminum busbar with width up to 5-10
mm (0.20-0.39 in).
Due to the set variety of these busbar supports
usage of switchboard equipment support provides
convenience of design and mounting.

Quick and easy way to select a suitable set:

  1. Define quantity of poles in a busbar
    support (1-3-4)
  2. Choose necessary type of busbar insulator what busbar (5 mm(0.20 in) or 10 mm(0.39in)) quantity busbar sections
  3. Choose necessary length of profile (write out the article)

INFORMATION:

  • For indoor installation in an electrical board
  • The strength of current up to 4500A
  • Adjustable distance between phases (12.5 mm step (0.49in))
  • 4 types of holders
  • Busbar width from 30 mm (1.18in) to 1-30 mm (0.04 – 1.18 in)
  • Operational temperature range: -40°C (-40°F) to +130°C (266°F)
  • Quick and easy mounting, small quantity of elements
  • Aluminum perforated profile
  • Insulator with convenient clamps
  • Fastener
  • Insulating strength more than 20kV/mm
  • Incombustible material
  • Various configuration of insulators in the set upon consultation with a switchboard equipment designer

*When choosing the length of the lower profile distance in places of busbar holder must be considered.

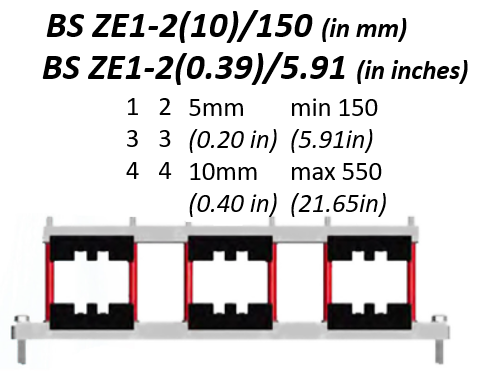

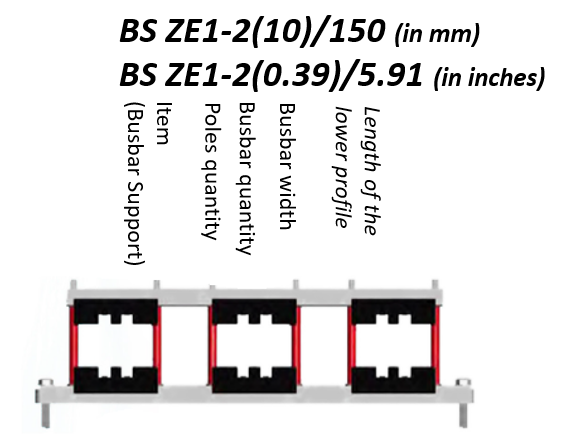

Order example:

BS ZE 3-3 (10)/445 (in mm)
BS ZE 3-3 (0.39)/17.52 (in inches)
BS ZE 3-2 (10)/445 (in mm)
BS ZE 3-2 (0.39)/17.52 (in inches)
