Ceiling Hanger

APPLICATION:
It is designed for mounting cable trays onto ceilings and slabs of buildings and structures.

INFORMATION:

Parts:
CEILING HANGER consists of stand and console, each is supplied separately.

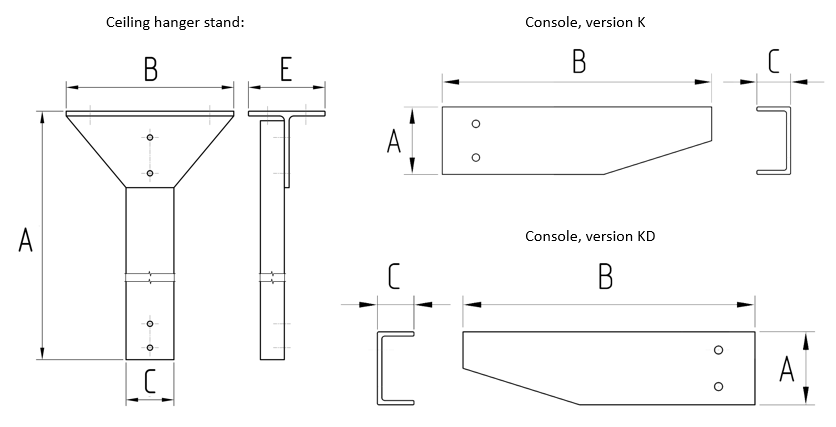

DIMENSIONS

CEILING HANGER STAND DIMENSIONS

Vinyl ester resin and Polyester resin

Item		Parameter A mm (in)	Parameter B mm (in)	Parameter C mm (in)	Parameter E mm (in)
VE	PE
CHS-520 VE	CHS-520 PE	520.00	350.00	100.00	160.00
		(20.47)	(13.78)	(3.94)	(6.30)
CHS-1020 VE	CHS-1020 PE	1020.00	350.00	100.00	160.00
		(40.16)	(13.78)	(3.94)	(6.30)

CEILING HANGER CONSOLE DIMENSIONS

Item				Parameter A mm (in)	Parameter B mm (in)	Parameter C mm (in)
Version K		Version KD
VE	PE	VE	PE
CHC-K 100 VE	CHC-K 100 PE	CHC-KD 100 VE	CHC-KD 100 PE	100.00	200.00	50.00
				(3.94)	(7.87)	(1.97)
CHC-K 200 VE	CHC-K 200 PE	CHC-KD 200 VE	CHC-KD 200 PE	100.00	300.00	50.00
				(3.94)	(11.81)	(1.97)
CHC-K 300 VE	CHC-K 300 PE	CHC-KD 300 VE	CHC-KD 300 PE	100.00	400.00	50.00
				(3.94)	(15.75)	(1.97)
CHC-K 400 VE	CHC-K 400 PE	CHC-KD 400 VE	CHC-KD 400 PE	100.00	500.00	50.00
				(3.94)	(19.69)	(1.97)
CHC-K 500 VE	CHC-K 500 PE	CHC-KD 500 VE	CHC-KD 500 PE	100.00	600.00	50.00
				(3.94)	(23.62)	(1.97)
CHC-K 600 VE	CHC-K 600 PE	CHC-KD 600 VE	CHC-KD 600 PE	100.00	700.00	50.00
				(3.94)	(27.56)	(1.97)
