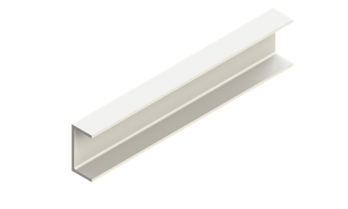

Composite U-beam
APPLICATION:
For creating carrier beams and stringers.
Suitable for use together with cable consoles.
INFORMATION:
Materials:
- VE – vinyl ester resin
- PE – polyester resin
Length up to 12m (39.37 ft)
DIMENSIONS
| Item | Dimension A mm (in) |
Dimension B mm (in) |
Thickness t mm (in) |
Weight kg/m (lb/ft) |
|
|---|---|---|---|---|---|
| VE | PE | ||||
| CUB 45x28x5 VE | CUB 45x28x5 PE | 45.00 | 28.00 | 5.00 | 0.83 |
| (1.77) | (1.10) | (0.20) | (0.56) | ||
| CUB 100x50x6 VE | CUB 100x50x6 PE | 100.00 | 50.00 | 6.00 | 2.21 |
| (3.94) | (1.97) | (0.24) | (1.49) | ||
| CUB 150x70x8 VE | CUB 150x70x8 PE | 150.00 | 70.00 | 8.00 | 4.27 |
| (5.91) | (2.76) | (0.31) | (2.87) | ||
| CUB 200x100x10 VE | CUB 200x100x10 PE | 200.00 | 100.00 | 10.00 | 7.41 |
| (7.87) | (3.94) | (0.39) | (4.98) | ||
