Pipe Clip ZE1
APPLICATION:
Pipe clips ZE are manufactured in single and double line versions.
They allow to secure pipes of following diameters mm (in):
Pipe diameter
| mm | 16.00 | 18.00 | 20.00 | 22.00 | 25.00 | 27.00 | 32.00 | 34.00 | 40.00 | 42.00 | 50.00 | 52.00 | 63.00 | 65.00 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (0.63) | (0.71) | (0.79) | (0.87) | (0.98) | (1.06) | (1.26) | (1.34) | (1.57) | (1.65) | (1.97) | (2.05) | (2.48) | (2.56) |
Optionally they may have additional an lug for fixing heating systems.
SINGLE LINE VERSION (Pipe Clip ZE1)

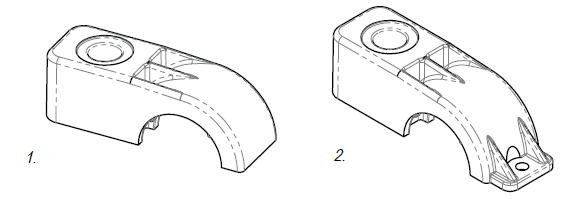

Type/size modifications:

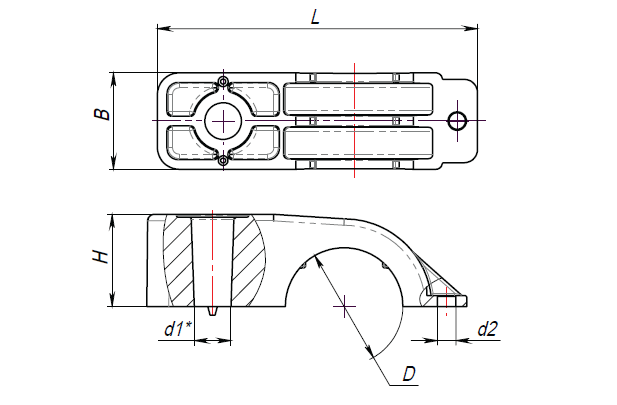

| Size Denomination | Modification | D ±0.5 mm | d2 ± 0.2 mm | В ±1 mm | Н ±1 mm | L ± 2 mm |
|---|---|---|---|---|---|---|
| D ±0.02 in | d2 ± 0.008 in | В ±0.04 in | Н ±0.04 in | L ± 0.08 in | ||
| PClip ZE1 х16/18 – (1,2) | 1 | 21.80 | – | 22.00 | 21.00 | 65.00 |
| (0.86) | (0.87) | (0.83) | (2.56) | |||
| 2 | 21.80 | 4.20 | 22.00 | 21.00 | 73.00 | |
| (0.86) | (0.17) | (0.87) | (0.83) | (2.87) | ||
| PClip ZE1x20/22 – (1,2) | 1 | 21.80 | – | 22.00 | 21.00 | 65.00 |
| (0.86) | (0.87) | (0.83) | (2.56) | |||
| 2 | 21.80 | 4.20 | 22.00 | 21.00 | 73.00 | |
| (0.86) | (0.17) | (0.87) | (0.83) | (2.87) | ||
| PClip ZE1х25/27 – (1,2) | 1 | 26.80 | – | 22.00 | 21.00 | 65.00 |
| (1.06) | (0.87) | (0.83) | (2.56) | |||
| 2 | 26.80 | 4.20 | 22.00 | 21.00 | 73.00 | |
| (1.06) | (0.17) | (0.87) | (0.83) | (2.87) | ||
| PClip ZE1х32/34 – (1,2) | 1 | 33.80 | – | 25.00 | 31.00 | 86.60 |
| (1.33) | (0.98) | (1.22) | (3.41) | |||
| 2 | 33.80 | 5.20 | 25.00 | 31.00 | 95.60 | |
| (1.33) | (0.20) | (0.98) | (1.22) | (3.76) | ||
| PClip ZE1х40/42 – (1,2) | 1 | 41.80 | – | 25.00 | 31.00 | 86.60 |
| (1.65) | (0.98) | (1.22) | (3.41) | |||
| 2 | 41.80 | 5.20 | 25.00 | 31.00 | 95.60 | |
| (1.65) | (0.20) | (0.98) | (1.22) | (3.76) | ||
| PClip ZE1х50/52 – (1,2) | 1 | 51.80 | – | 28.00 | 43.00 | 114.00 |
| (2.04) | (1.10) | (1.69) | (4.49) | |||
| 2 | 51.80 | 6.20 | 28.00 | 43.00 | 125.00 | |
| (2.04) | (0.24) | (1.10) | (1.69) | (4.92) | ||
| PClip ZE1х63/65 – (1,2) | 1 | 64.80 | – | 28.00 | 43.00 | 114.00 |
| (2.55) | (1.10) | (1.69) | (4.49) | |||
| 2 | 64.80 | 6.20 | 28.00 | 43.00 | 125.00 | |
| (2.55) | (0.24) | (1.10) | (1.69) | (4.92) |
* PClip ZE1х20 – (1,2) – type/size modification
* PClip ZE1х20 – 2 TI – order with thermally insulated fastening
* PClip ZE1х20 – 1 LC – order low-combustible version
