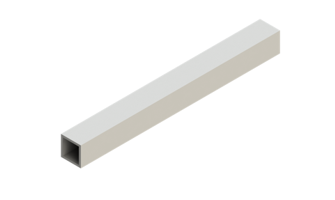

Composite Profile
APPLICATION:
For creating carrier beams and stringers.
Suitable for use together with cable consoles.
INFORMATION:
Materials:
- VE – vinyl ester resin
- PE – polyester resin
Length up to 12m (39.37 ft)
DIMENSIONS
| Item | Dimension A mm (in) |
Dimension B mm (in) |
Thickness t mm (in) |
Weight kg/m mm (lb/ft) |
|
|---|---|---|---|---|---|
| VE | PE | ||||
| CProfile 50×5 VE | CProfile 50×5 PE | 50.00 | 50.00 | 5.00 | 1.67 |
| (1.97) | (1.97) | (0.20) | (1.12) | ||
| CProfile 60×5 VE | CProfile 60×5 PE | 60.00 | 60.00 | 5.00 | 2.05 |
| (2.36) | (2.36) | (0.20) | (1.38) | ||
